VW 94 X 82 Forged JE Drag Race Piston And Long Cylinder Kit

Part#: VW9400T1SRLJE
$ 754.95
Default Title

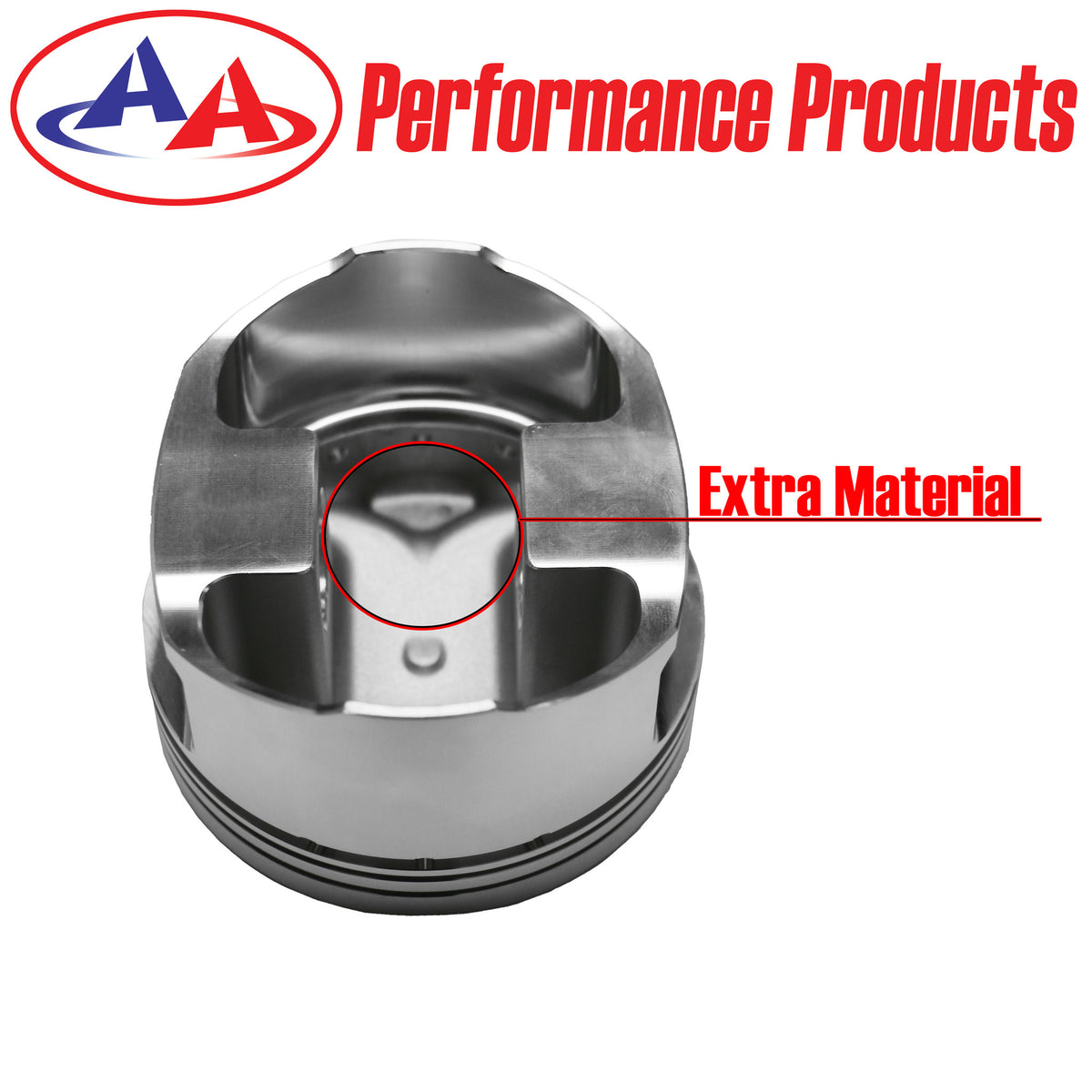

This is a new set of 94mm Drag Race JE Forged Pistons with Long cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top so that valve pockets can be cut into them. In-addition to the STD Features the JE pistons have, the Drag Race pistons come with a 1x1.2x2.8 JE ring Pack, and have a 33mm Compression Height.  The AA Long cylinders are 23.5mm longer than STD cylinders, designed to be "cut to fit" for the engine builder that wants to get exact deck heights without having to shim the engine.This kit does require machine work on the cylinder heads and case; Fits 94 Case, 94 Heads. The 33mm Compression Height will work with larger stroked cranks 80, 82, 84, 86, and 88



Engine size: 2276cc with 82mm crank

Stroke: 80 to 88

Cylinders: Cast Iron

Pistons: JE 2618 Forged

Compression Height: 33mm

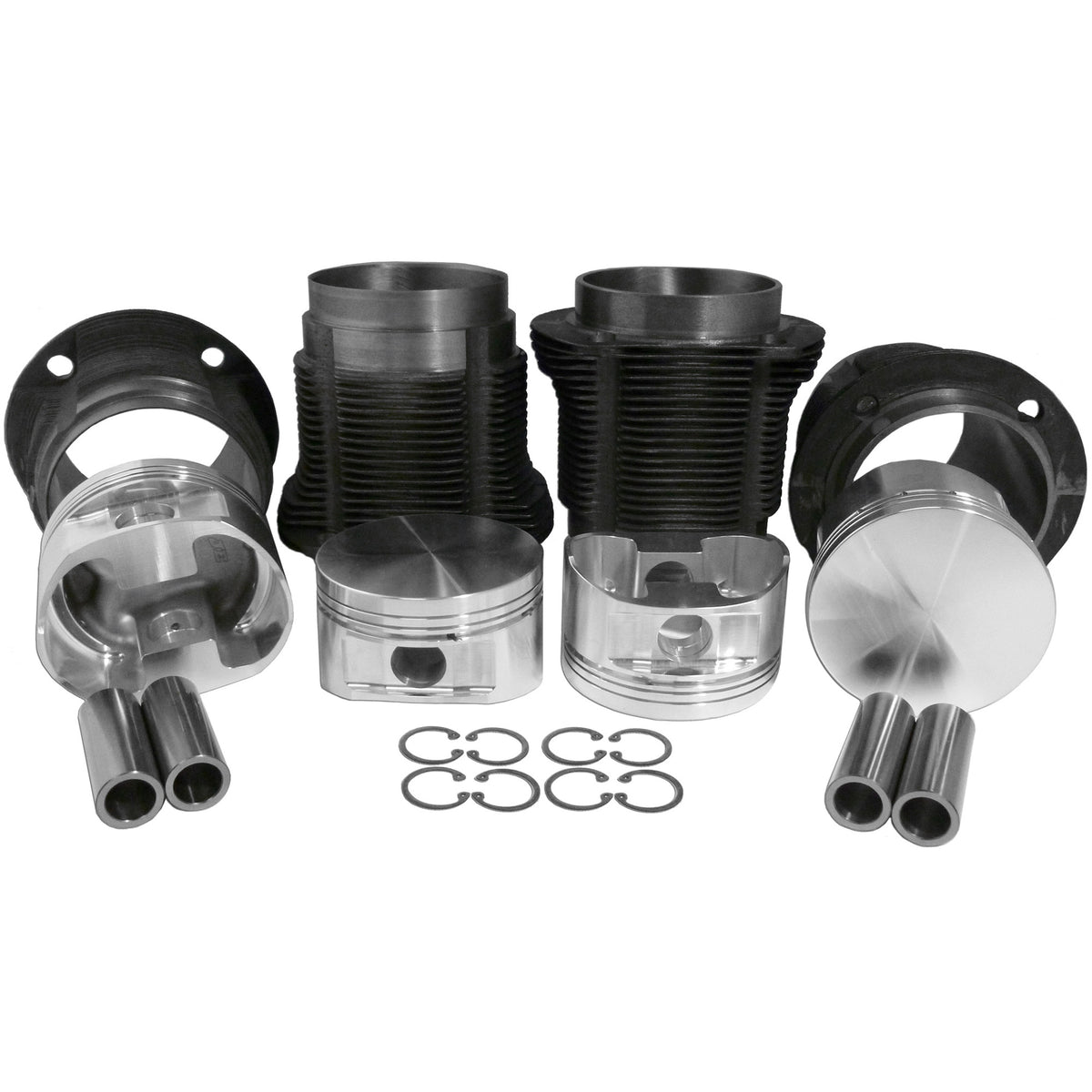

Kit includes: 4 Cylinders, 4 Pistons, 1 set of Nitrided Piston Rings and 4 Pins and clips.

Part # VW9400T1SRLJE



**Machine Work Required**
