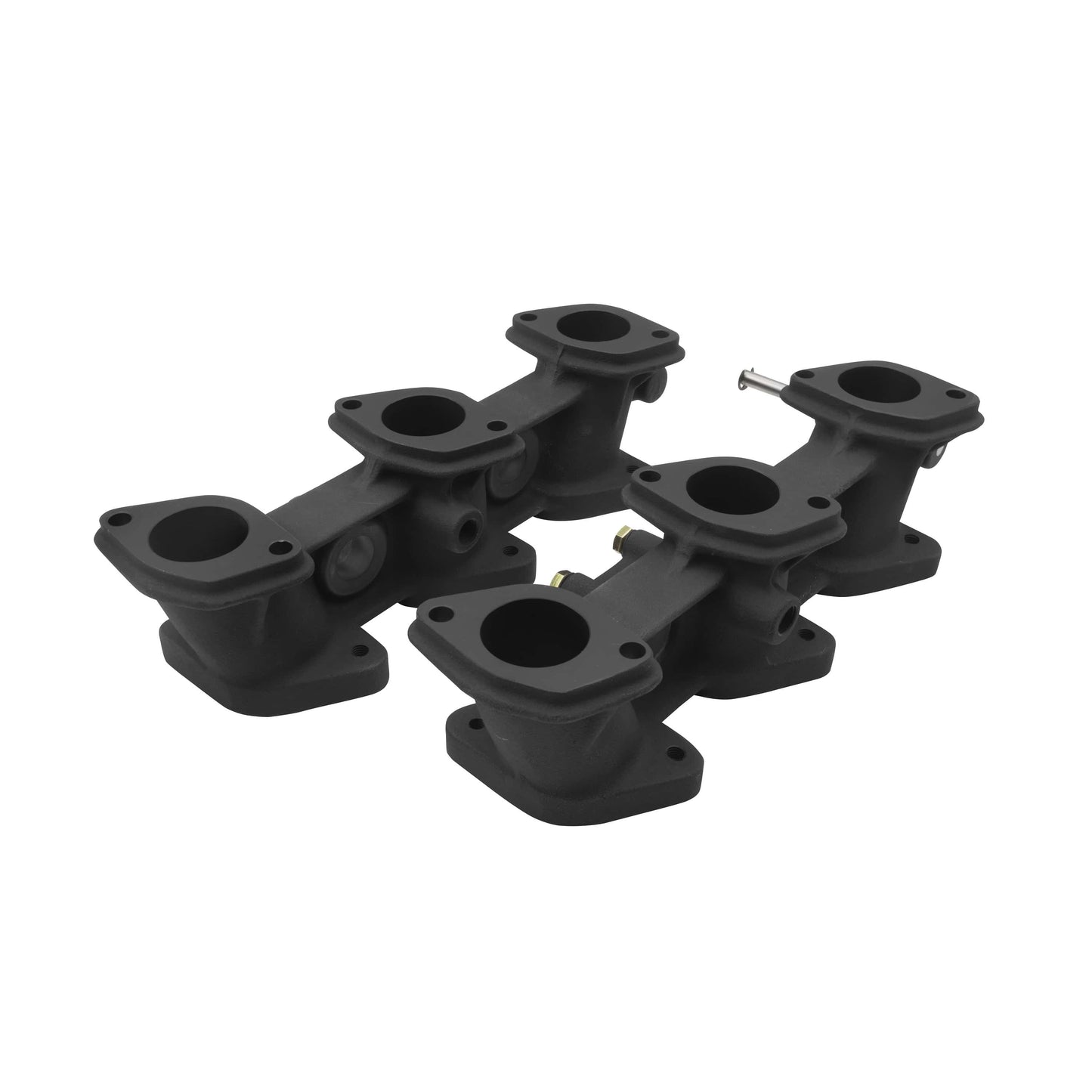

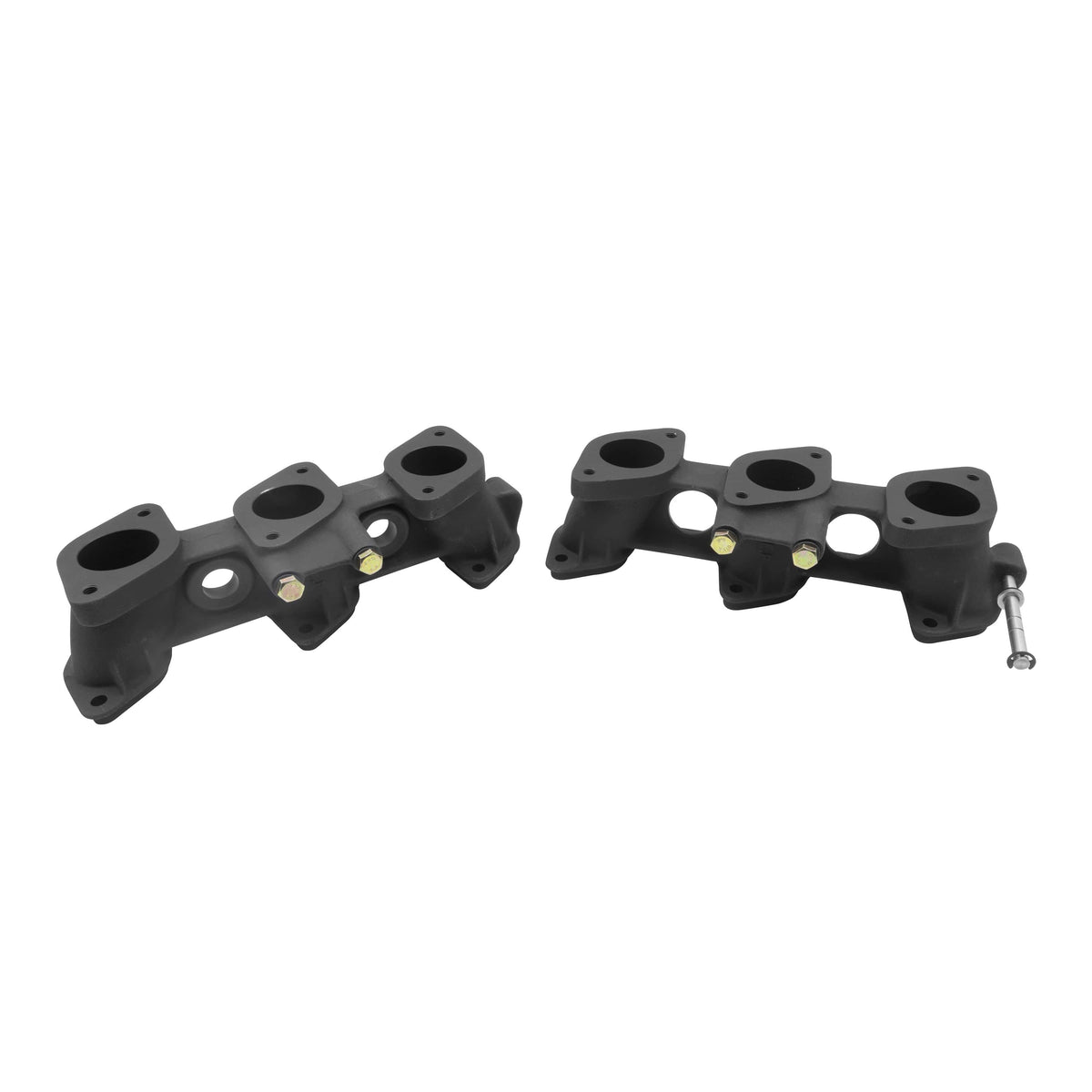

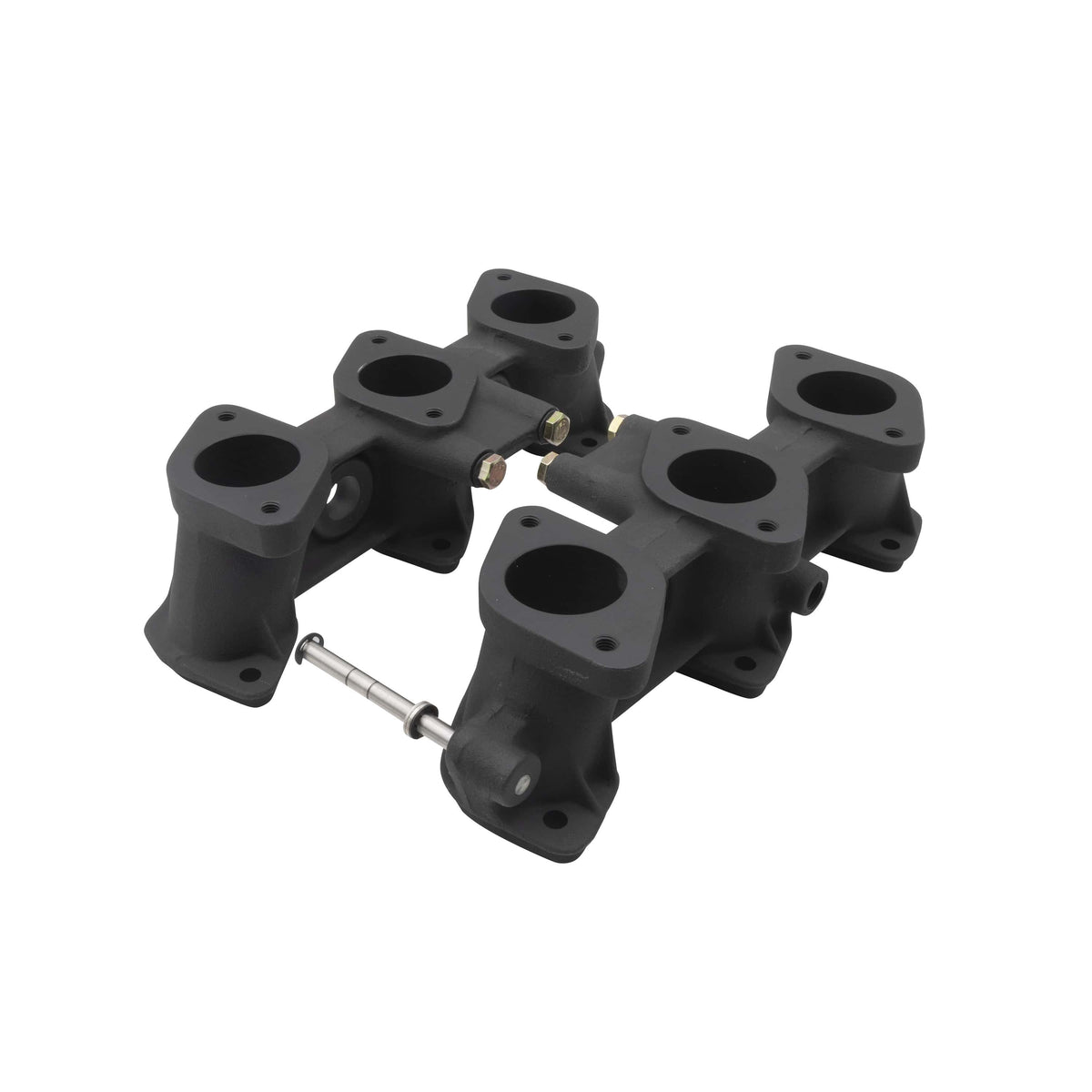

PMO Intake Manifold Sets, CIS Injection, Rennsport "R" Finish, for Porsche 911

Part#: PM-O976-0
Vendor: PMO Induction

Description:

PMO Intake Manifold Sets are Engineered and Custom Made for your Classic Porsche. Made from the Highest Quality Materials and Custom Finished In-House, PMO Intake Manifold Sets are Available in a Raw Aluminum Finish or Custom "R" Finish (Proprietary Anodized Finish). PMO Intake Manifold Sets are the Industry Standard for Quality and Performance. Fits PMO or Weber Carburetors.

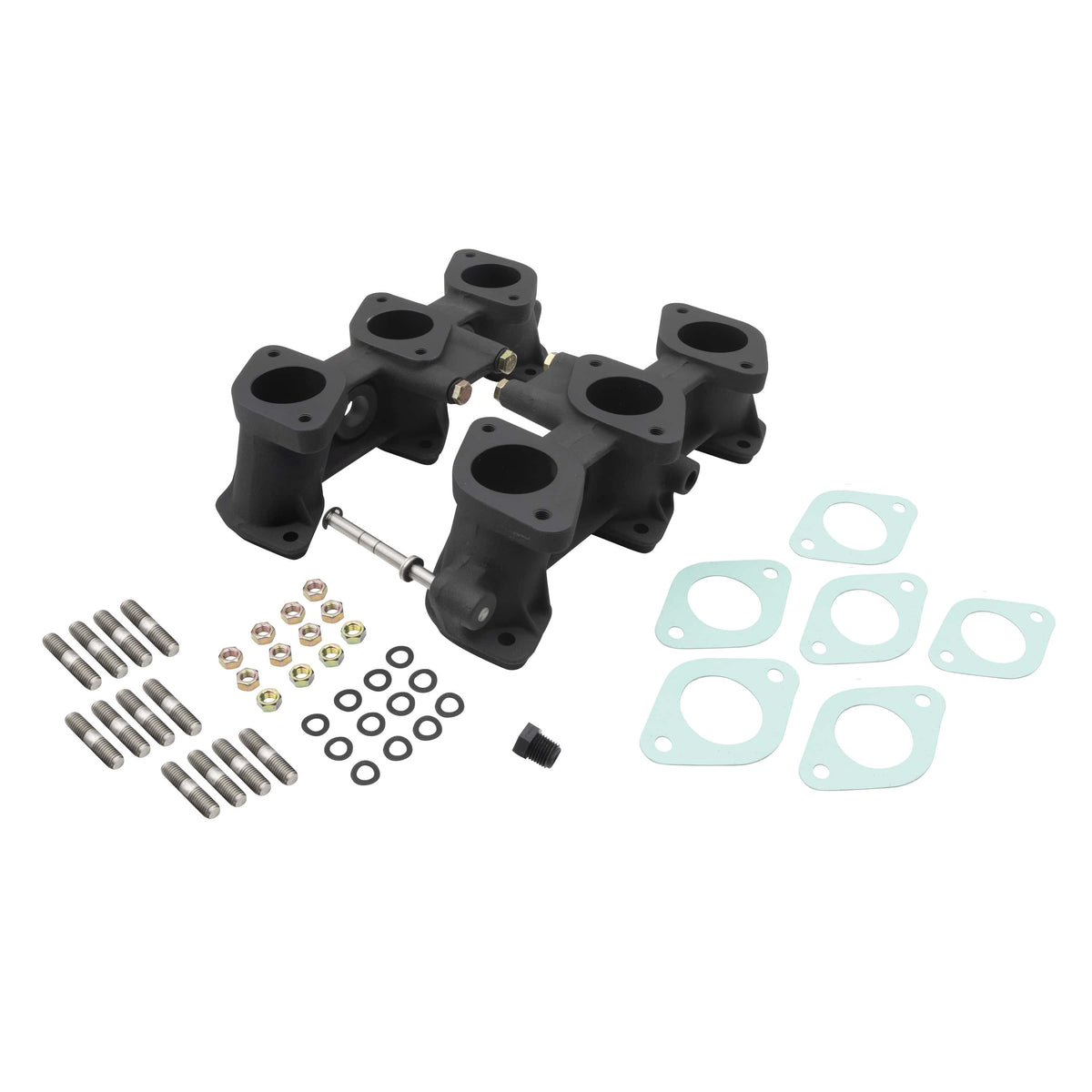

All PMO Intake Manifold Sets Include: Intake Manifolds, Gaskets, and Hardware

PMO recommends running isolators on all the PMO intakes to help prevent heat transfers, vibration, reduce foaming and stabilize the fuel in the float bowl.

Part# Carb Size Port Size Manifold Height Application
PM-O976-0 40mm 36mm Std Most 2.7s, 3.0 Small Port Engines
PM-O977-0 40mm 37mm Tall Most 2.7s, 3.0 Small Port Engines
PM-O978-0 46mm 35mm Std Small Port 3.0
PM-O979-0 46mm 38mm Std Large Port 3.0
PM-O980-0 46mm 40mm Std Ported Heads
PM-O981-0 46mm 39mm Tall 3.0 Large Port
PM-O982-0 46mm 42mm Tall Ported Heads
PM-O983-0 50mm 42mm Tall Race Ported CIS Heads

For manifold selection first determine the base engine’s year and displacement. The original fuel system on the engine type dictates the manifold port shape and then it is a matter of matching the port size and carb size desired. (See Porsche Engine Data)

(IE: 1980 3.0 SC engine had 34-35mm ports and CIS fuel injection stock).
