VW 1600 Port & Polish Stage 2 Cylinder Heads, 40X35.5 "Pair"

Part#: 500 420 XXB P2 X2
Vendor: AA Performance Products

Description:

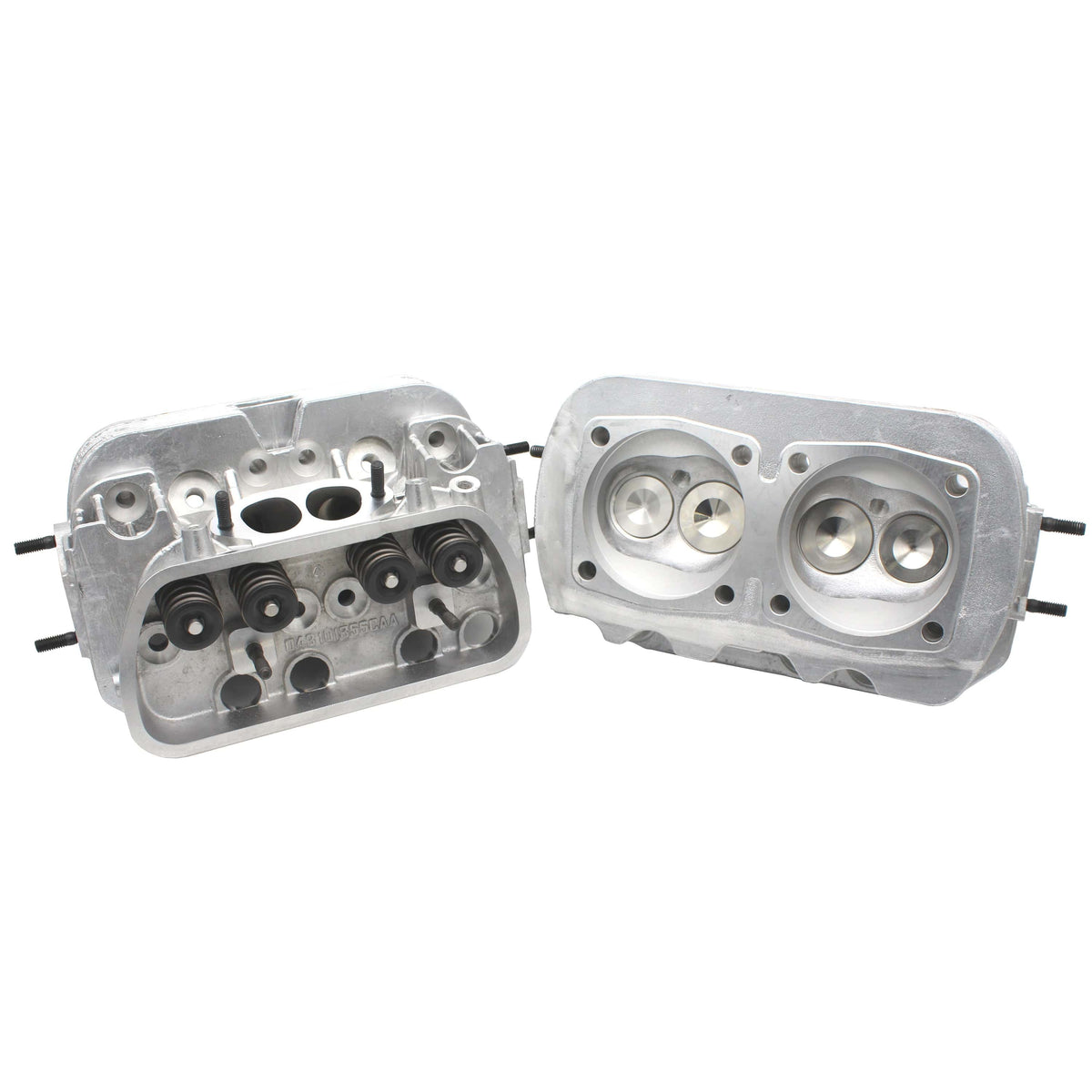

This is a brand new Set of 2 High Performance Stage 2 Mini Wedge Port Cylinder Heads for a VW Type 1 2 or 3 Dual Port. Heads comes with Hand Ports for increased Flow and Performance with Stainless Steel 40mm Intake and a Stainless Steel 35.5mm Exhaust Valves, Hardened Keepers, Chromoly retainers, and Dual high rev springs. They are ready to install.

Made from an AA 500 Series Casting it comes STD with: Clean flowing cooling vanes, for maximum cooling through the head, and around the intake ports for increased HP and over all cooling. A modernized Combustion chamber, for increased head flow & performance. A second Full Fin, so you can Fly cut your heads deeper to achieve almost any desired Head CC volume needed. Blocked off rocker stud bosses, to eliminate the O-ring and stop possible oil leaks. Long reach 3/4 Inch Spark Plugs, to reduce the chance of cracking between the Valve seat and Plug



Engine: VW Type 1 2 and 3 1600 Dual Port

Springs: Dual High rev

Valves: 40mm Intake by 35.5mm Exhaust

Casting: AA Performance 500

Plug Size: 12mm  (Replacement NGK Number is D8EA)



Bore: 85.5, works with 85.5,87, and 88 slip in kits

Bore: 92, works with 88 thick wall, 90.5 and 92mm kits

Bore: 94, works with 92 thick walls K and M, and 94mm kits



Please Pick Bore size when ordering Above
