Description

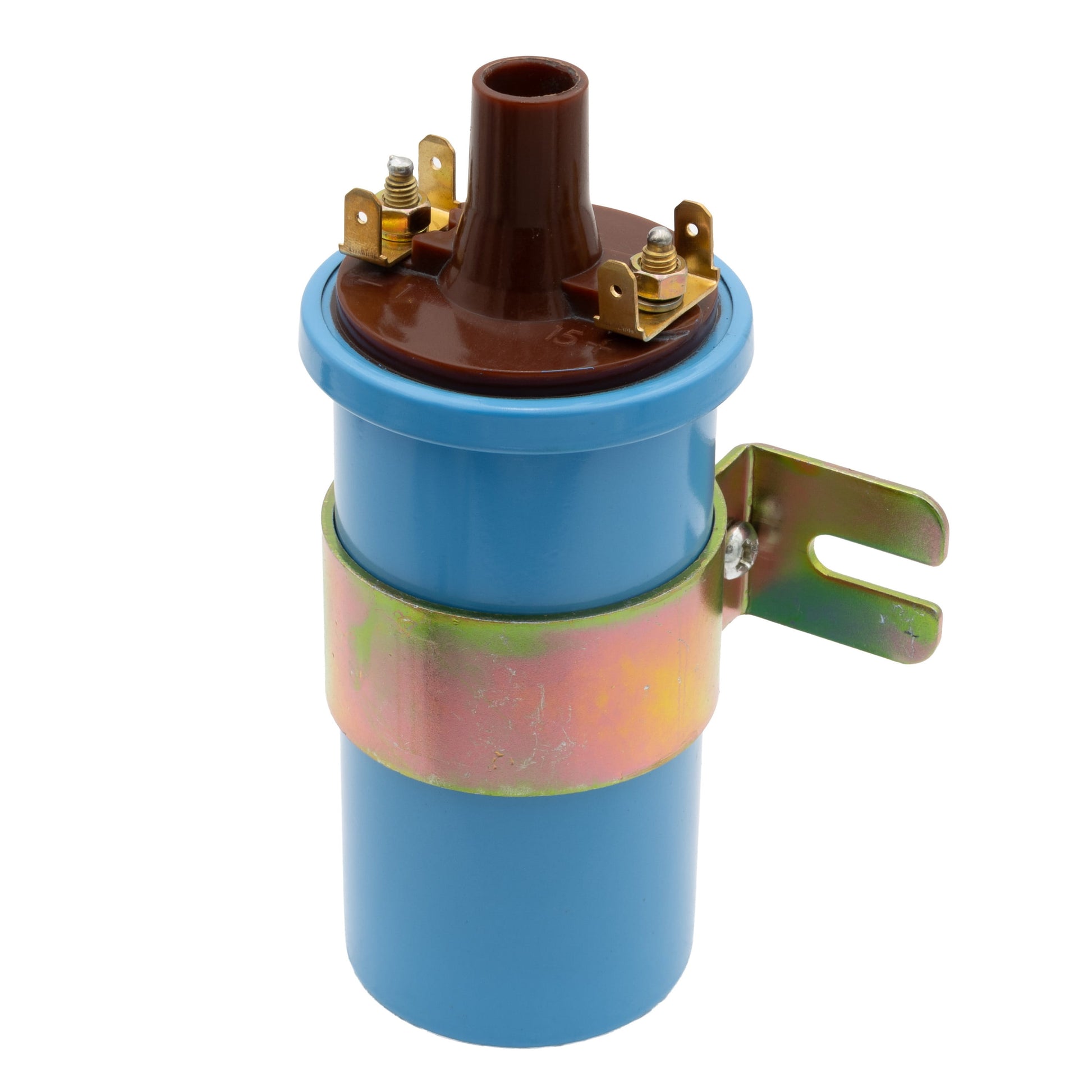

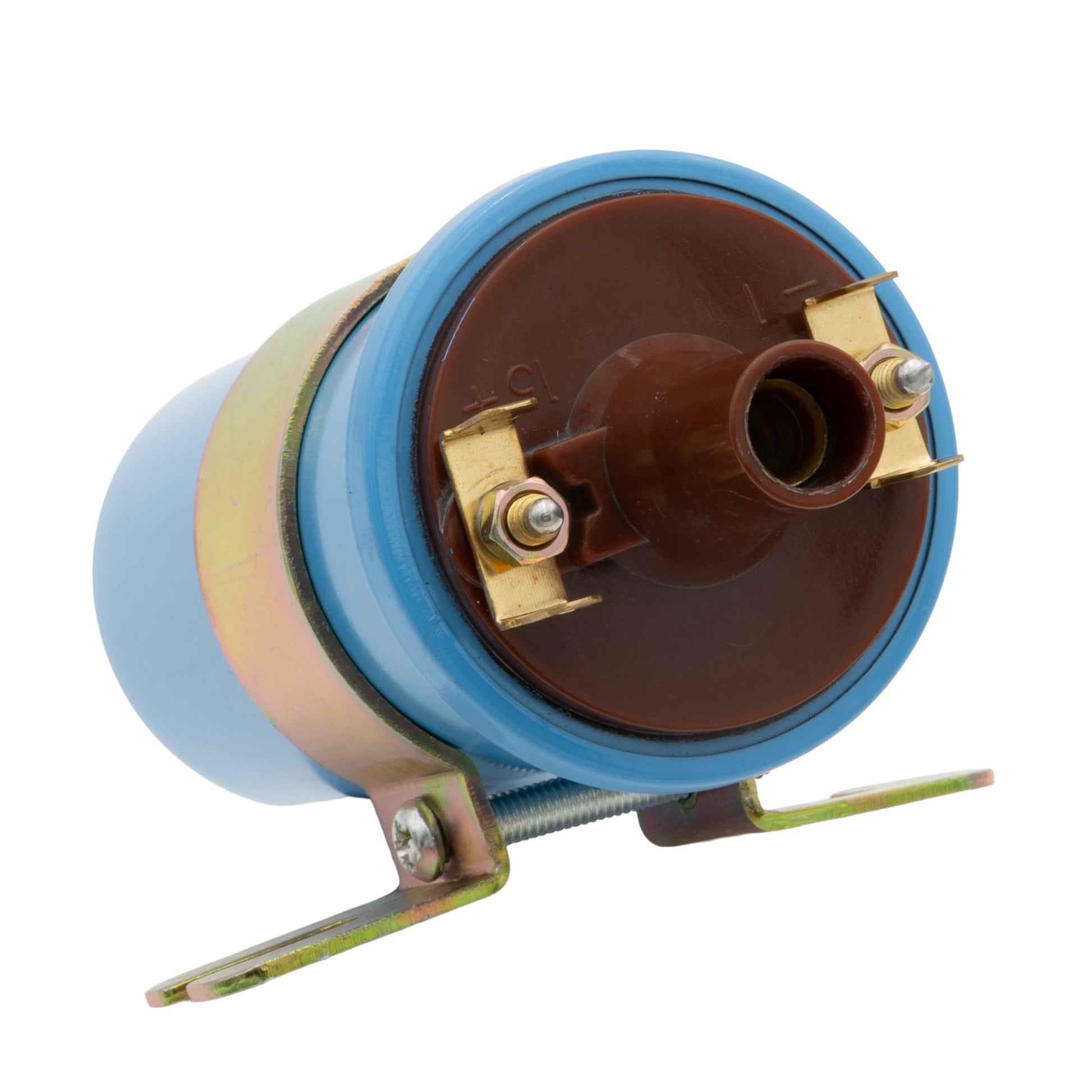

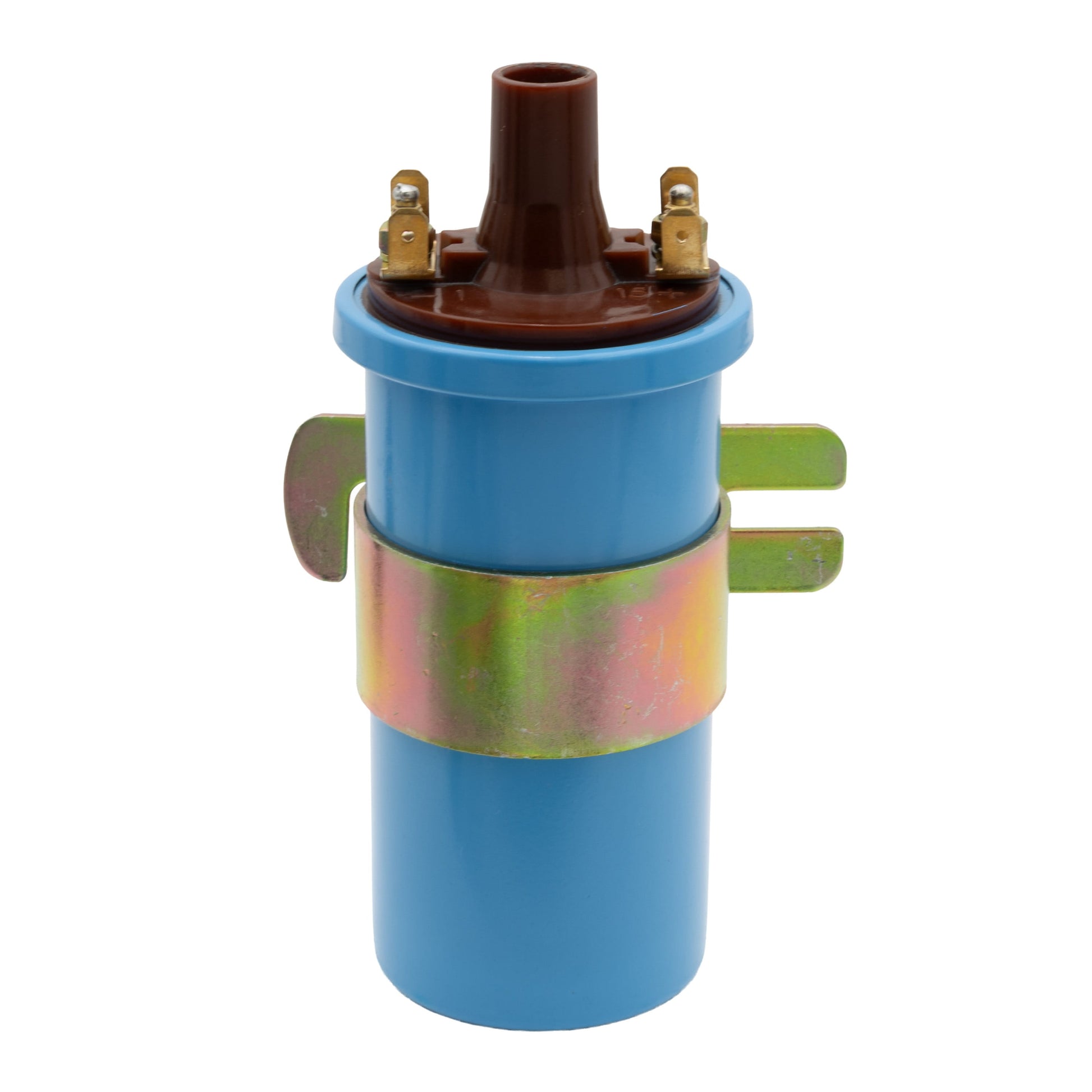

Brand New High Performance Coil 6 Volt
Ignition coil for vehicles running 6-volt electrical systems. The ignition coil creates high voltage required by the distributor, which delivers energy to the spark plugs to ignite the air/fuel mixture. The ignition coil is a standard service item and should be replaced if your vehicle is running poorly or experiencing a weak spark.
The coil is rated at 16,000 volts and features the standard 1.4-ohm resistance. The epoxy-filled design allows the coil to be mounted inverted without leaking. Additional power terminals allow the coil to power other electrical accessories. The included 14-gauge mounting bracket is stronger than standard brackets and features a gold zinc rust-preventative coating.
The coil measures 55mm in diameter and features a unique blue body with a brown cap. The bracket retains OE bolt-hole spacing for easy installation.
Replaces Bosch 00-016 and EMPI 00-9408-B
Fits Type 1, Type 2, and Type 3 engines 1967 & earlier, 6-volt equipped vehicles
Part # 00016C
