VW 92 x 69mm Thick Wall Piston & Cylinder Kit for 94mm Case *M*

Part#: VW9200T1M
$ 199.95
Default Title

This is a new set of Thick Wall 92mm VW Aircooled Type 1 Pistons and cylinders. These Cylinders are a full 2mm thicker than a standard 92mm cylinder. Perfect for those who want the ultimate in cooling or strength for High Performance applications This kit does require machine work on the cylinder heads and case; Fits 94 Case, 94 Heads. The 39.8mm Compression Height will work with small stroked cranks 69, 74, and 76


Engine size: 1835cc with 69mm crank

Stroke: 69 to 76

Cylinders: Cast Iron

Pistons: Hypereutectic

Compression Height: 39.8mm

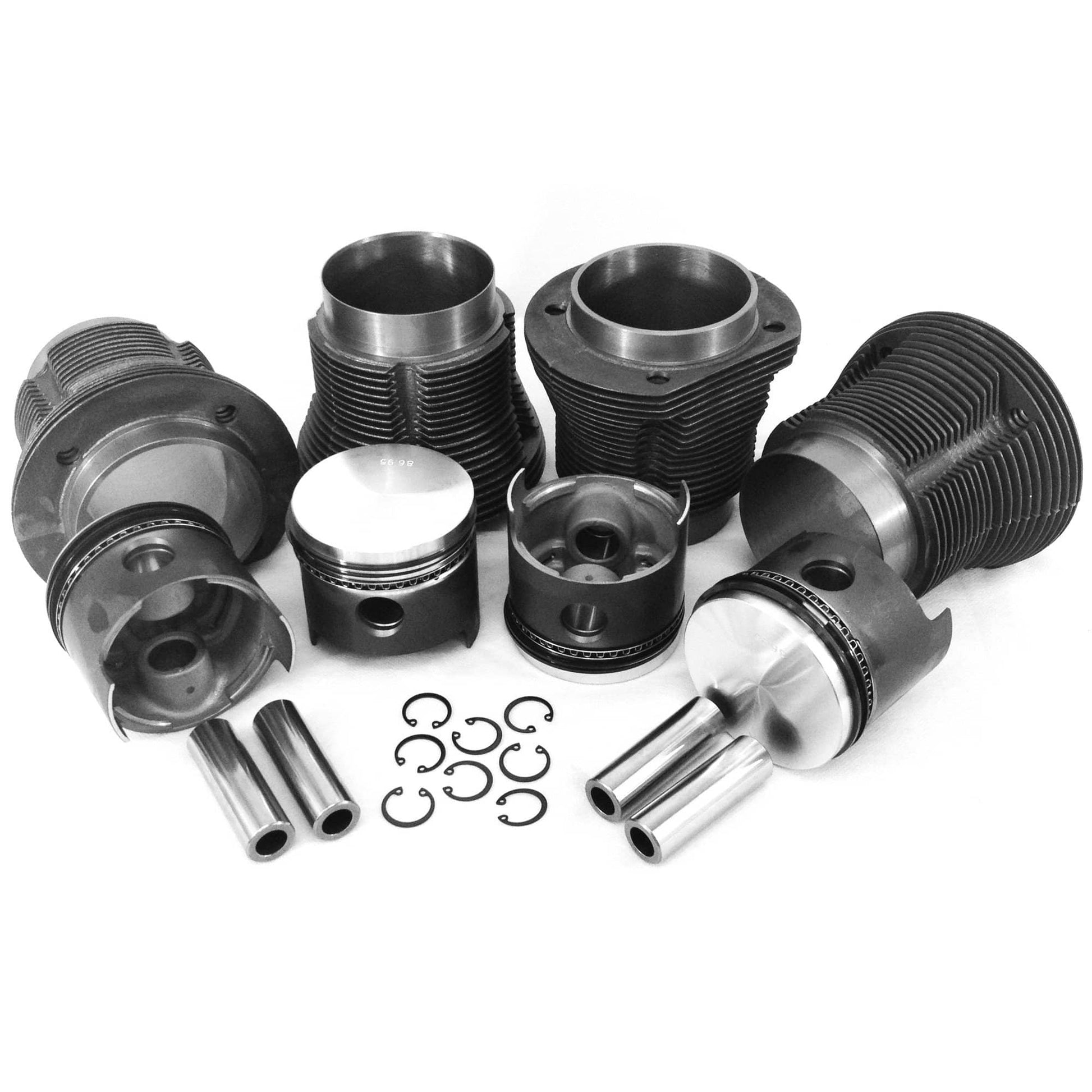

Kit includes: 4 Cylinders, 4 Pistons, 1 set of Piston Rings and 4 Pins and clips.

Part # VW9200T1M


**Machine Work Required**
