80x64mm 1286cc 36HP Type 1 Hypereutectic Piston & Liner Big Bore Kit

Part#: VW8000T36
$ 329.95
Default Title

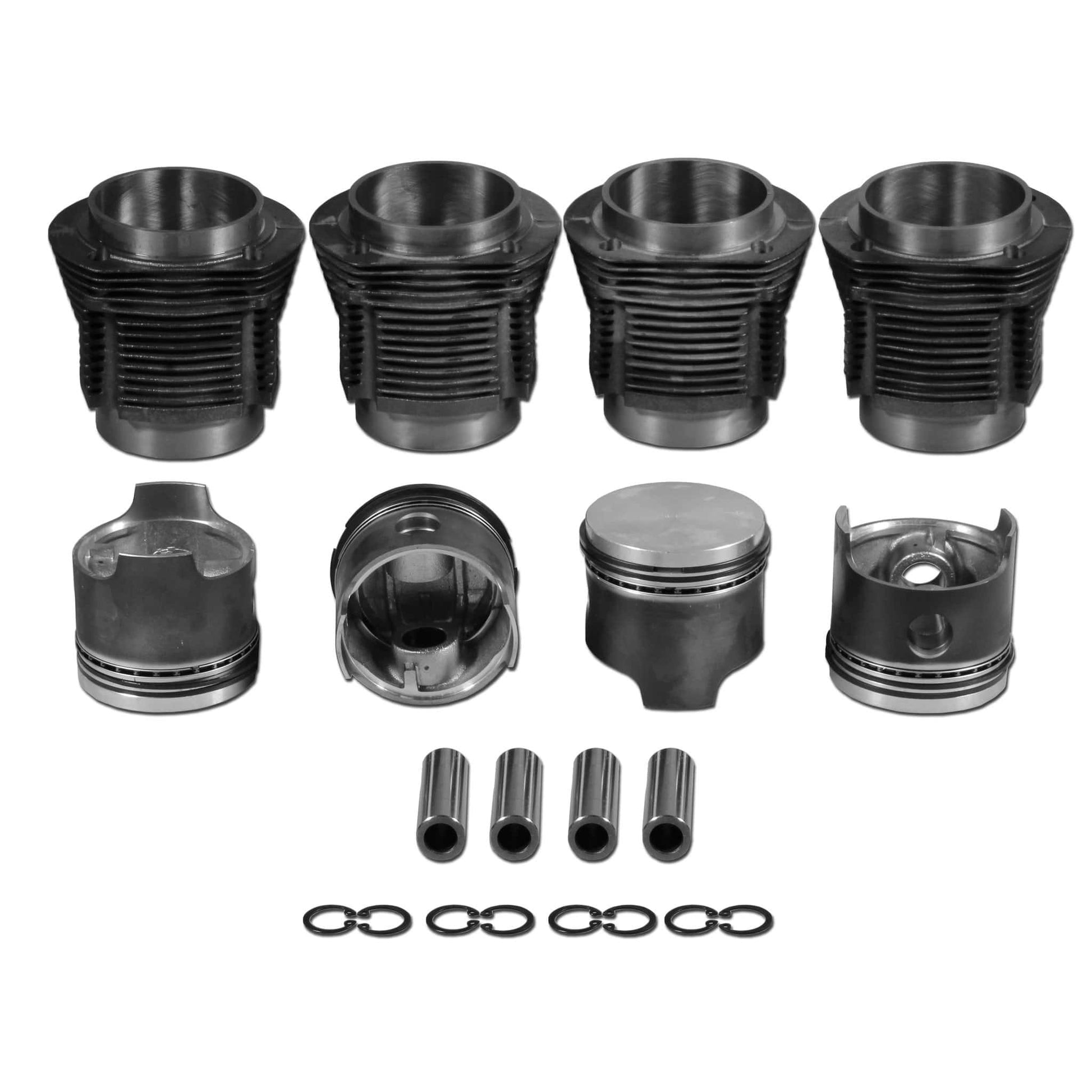

This is a set of Bigbore 80mm VW Type 1 36HP 1200cc pistons and cylinders. This Bigbore kit will turn a stock VW 36HP 1191cc into a 1286cc  The Pistons were designed to work with a 69mm stroke crank  giving you the ability to make a 1387 with all the parts available on the market..This kit does require machine work on the cylinder heads and case both will need to be opened to accommodate the bigger bore with out affecting the reliability..


Engine size: 1286cc

Stroke: 64 to 69mm

Cylinders: Cast Iron

Pistons: Hypereutectic

Compression Height: 38.05mm

Kit includes: 4 Cylinders, 4 Pistons, 1 set of piston rings, and 4 wrist pins and clips.

Part # VW8000T36


**Machine Work Required**
