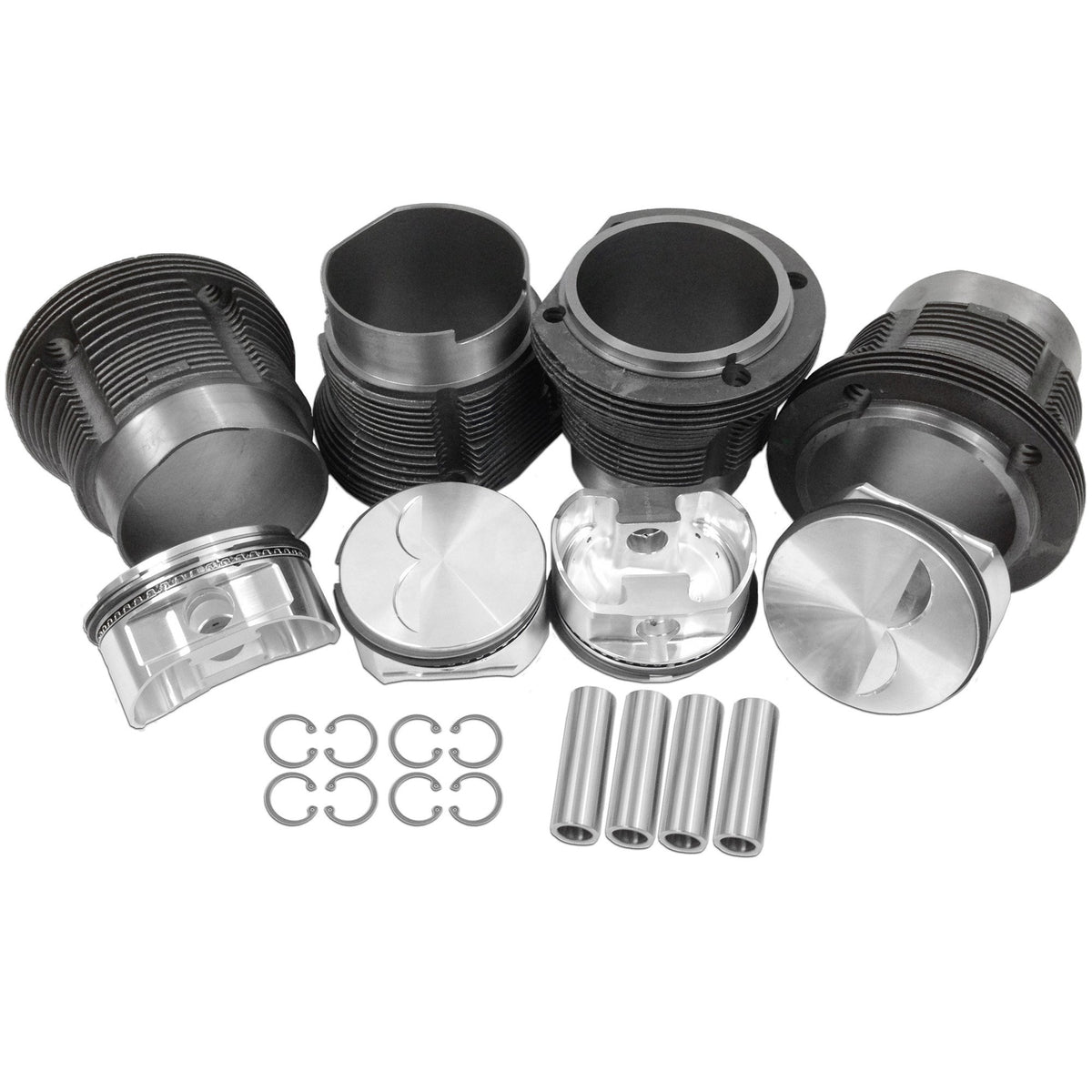

This is a new set of Type 4 103mm flat top JE Pistons and Cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins giving you the option to Build 2.3L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2865cc with 86mm Crank
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
Part # VW103T4S JE
***Machine work required***
