101.60mm JE Forged Piston & Liner Kit AKA 4"

Part#: VW101T1S JE
$ 895.95
101.60mm JE Forged Piston & Liner Kit AKA 4"

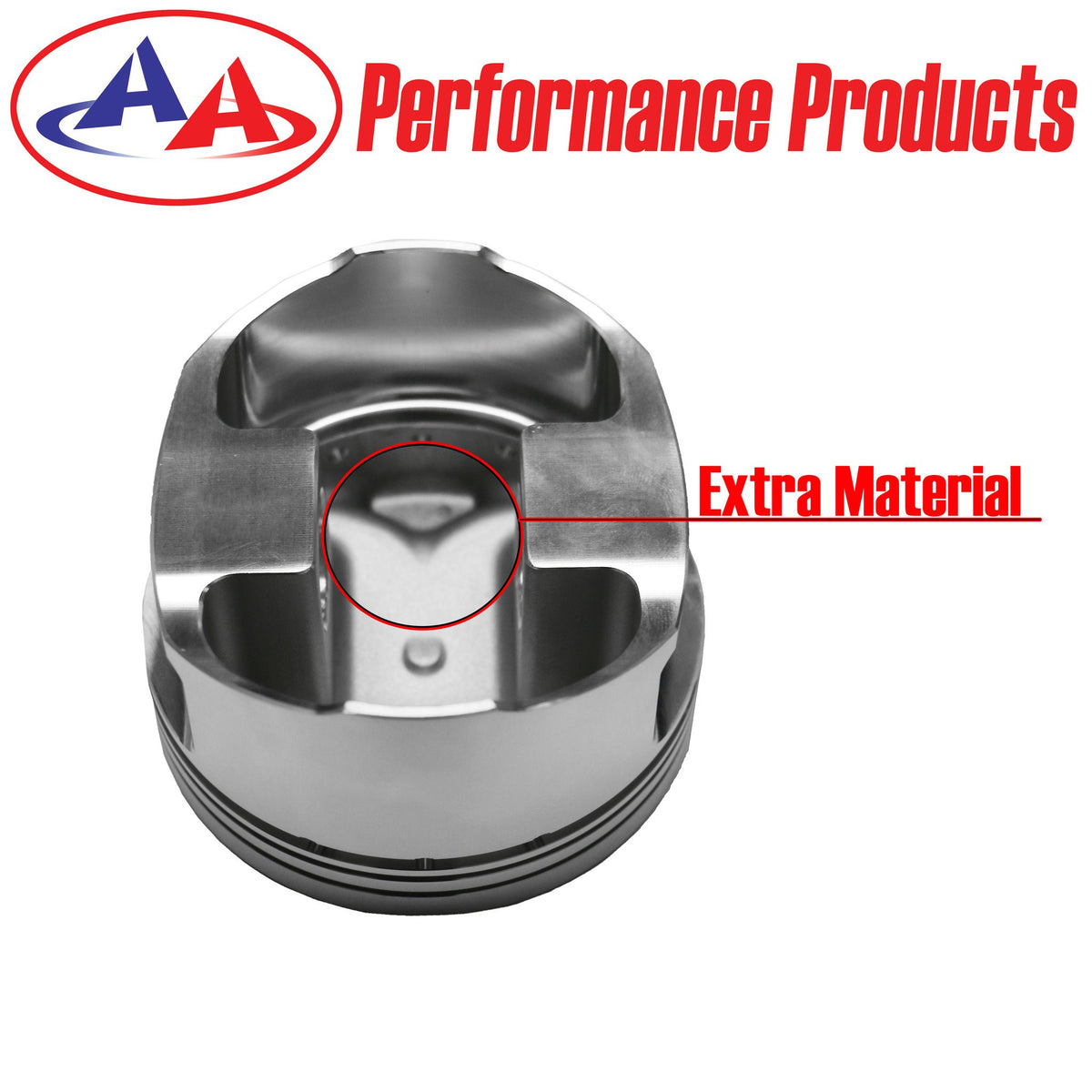

This is a new set of 101.6 JE Forged Pistons and Cylinders, The Biggest of the Big Bores.   JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top so that valve pockets can be cut into them. AA 101.6 This kit requires Special Case and Heads that will except the wider stud pattern. The Cylinders are longer and was Designed to be "cut to fit" for long stroke or long rod engines. They are also per cut for 6 stud heads


Bore: 101.6mm / 4 Inch

Stroke: B stroke pistons

Cylinders: Long 6 Stud Cast Iron

Pistons: JE forged

Compression Height: 34.29mm

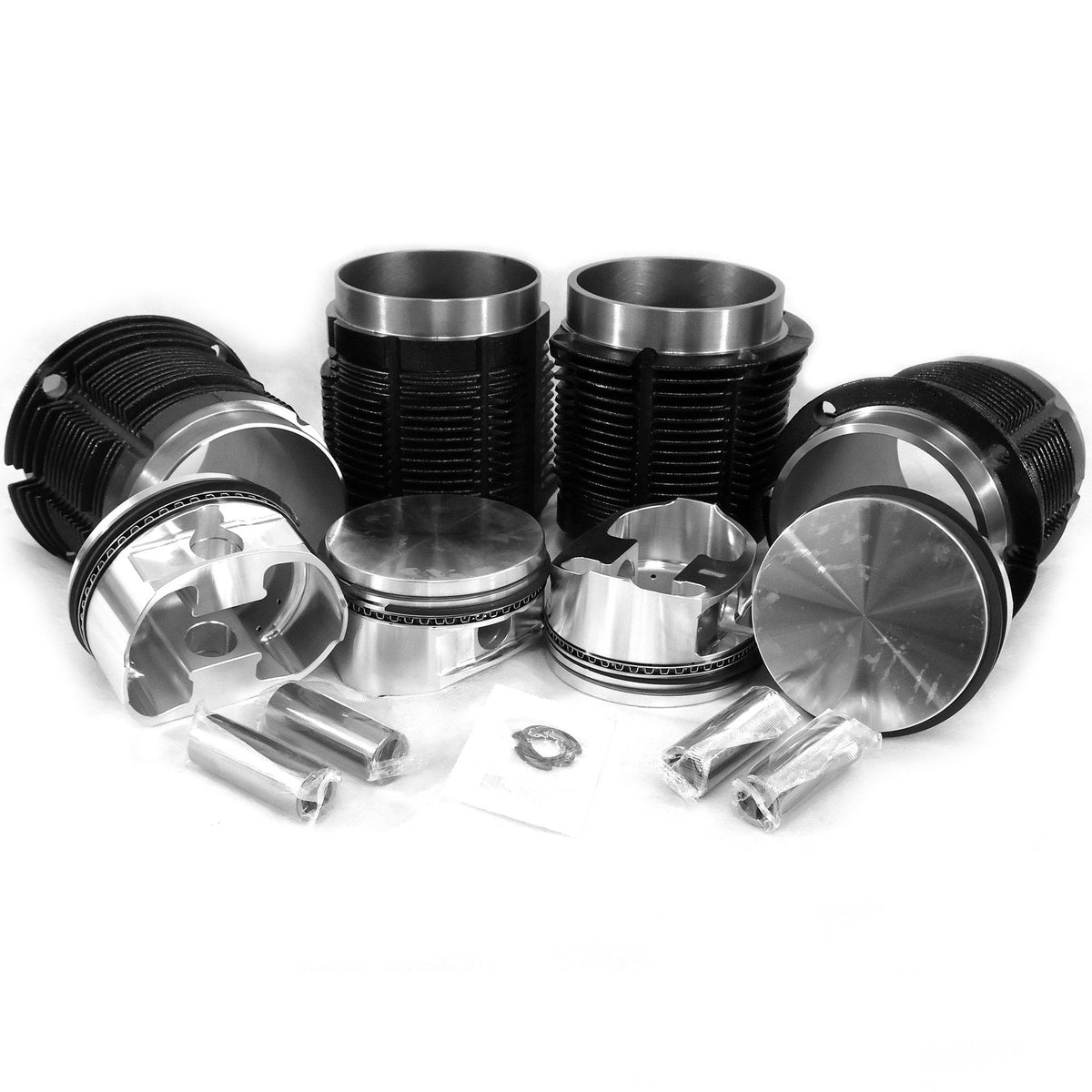

The new set includes: 4 pistons, 4 cylinders, 4 pins, clips and a set of rings

Part # VW101T1JE



***Machine Work Required***
